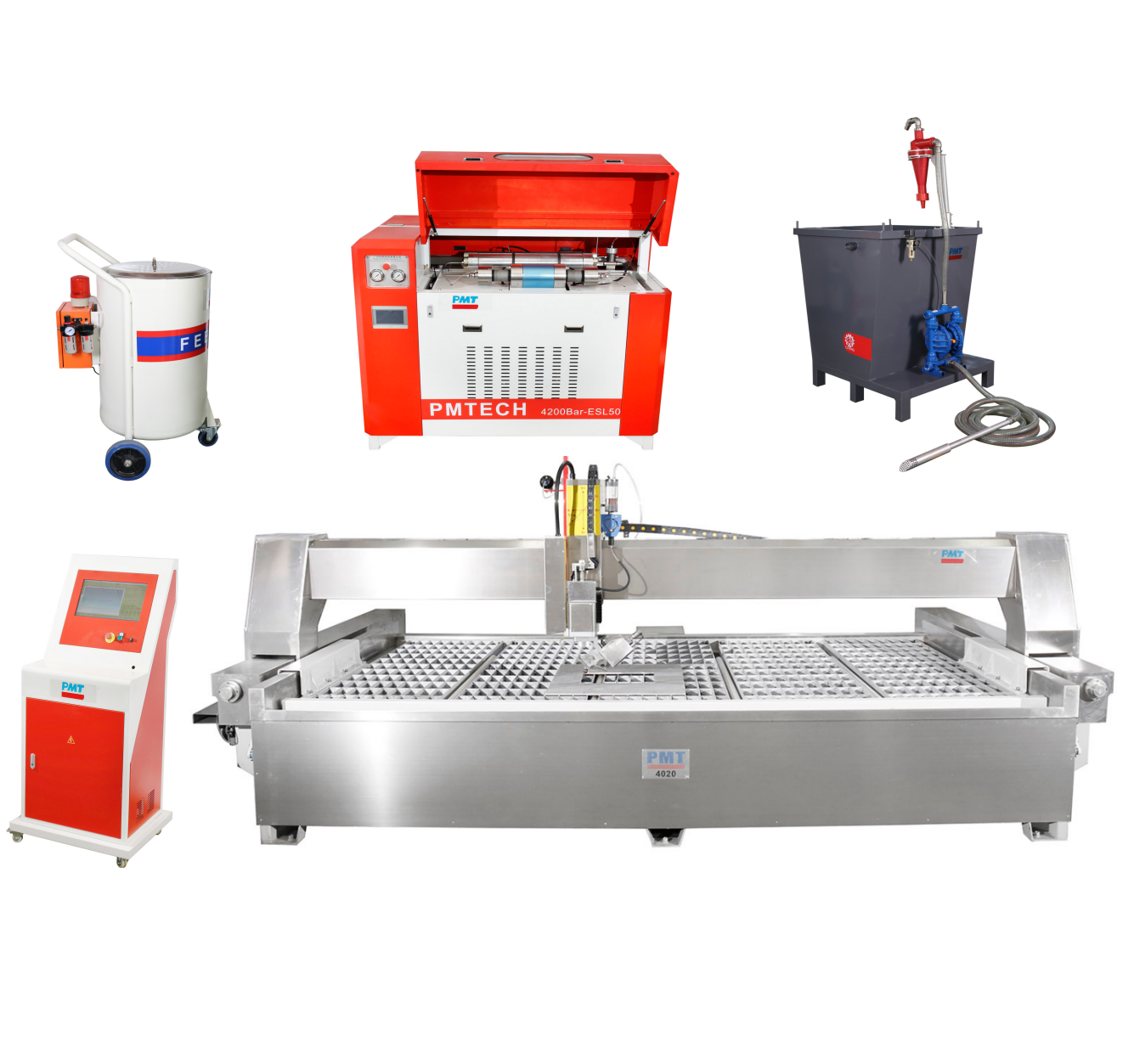

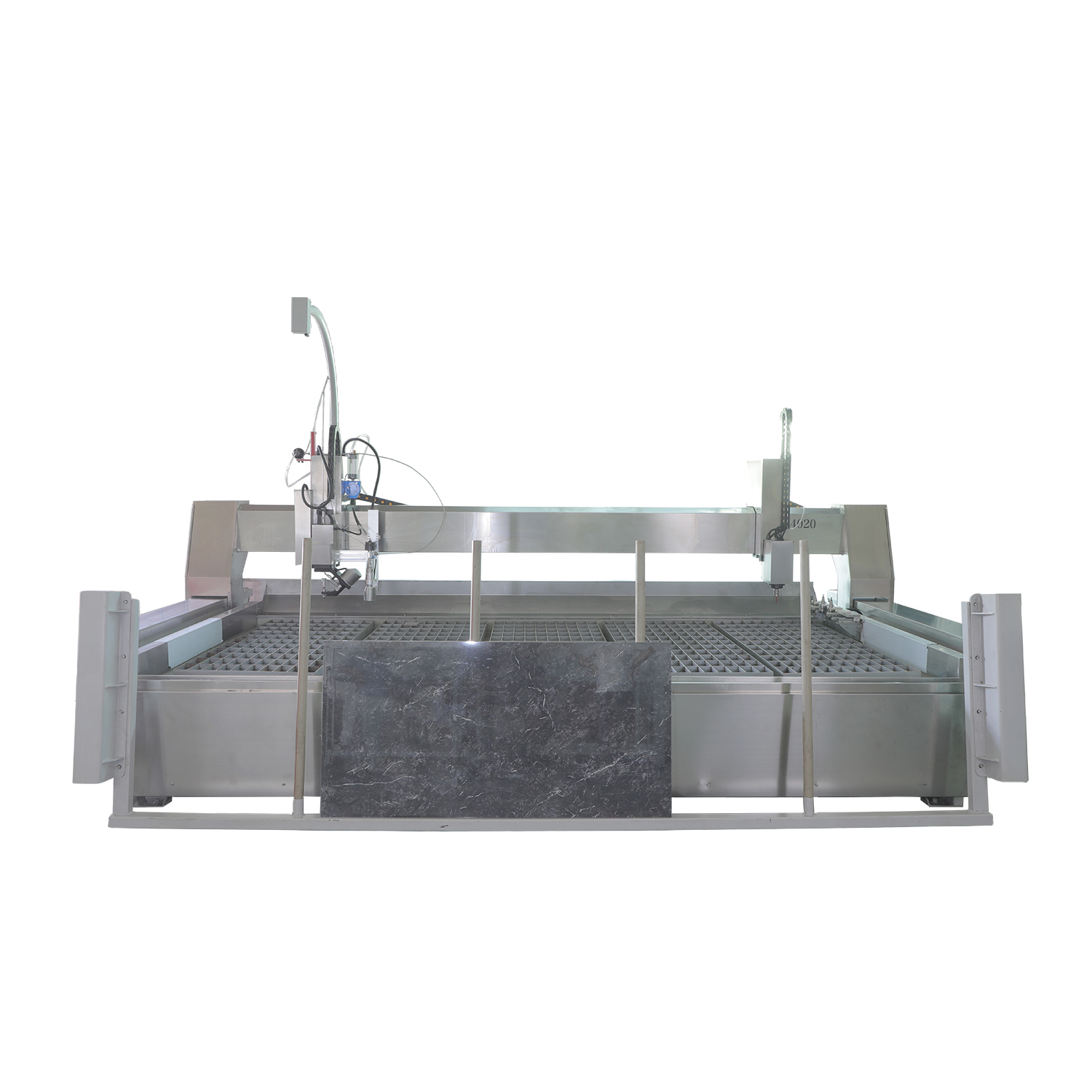

5 axis cutting head Waterjet Cutting Machine
Advantage of PMT waterjet cutting machine
1. Smooth cutting quality is perfect.
2. The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and waterjet cutting can also make very complex puzzles and murals.
3. Cutting speed is fast, and product consistency and interchangeability are very good.
4. Drilling, cutting and forming can be done at once.
5. Improve the working environment and reduce the impact of dust and noise on the operator.
6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material.
7. It is the only machine for processing composite materials and fragile porcelain.
8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble,glass, etc.
9. About size, we have 4000*2000 mm , 3000*2000mm , 2000*1500mm , 2500*1550mm , 6000*1950mm ect, which you want?

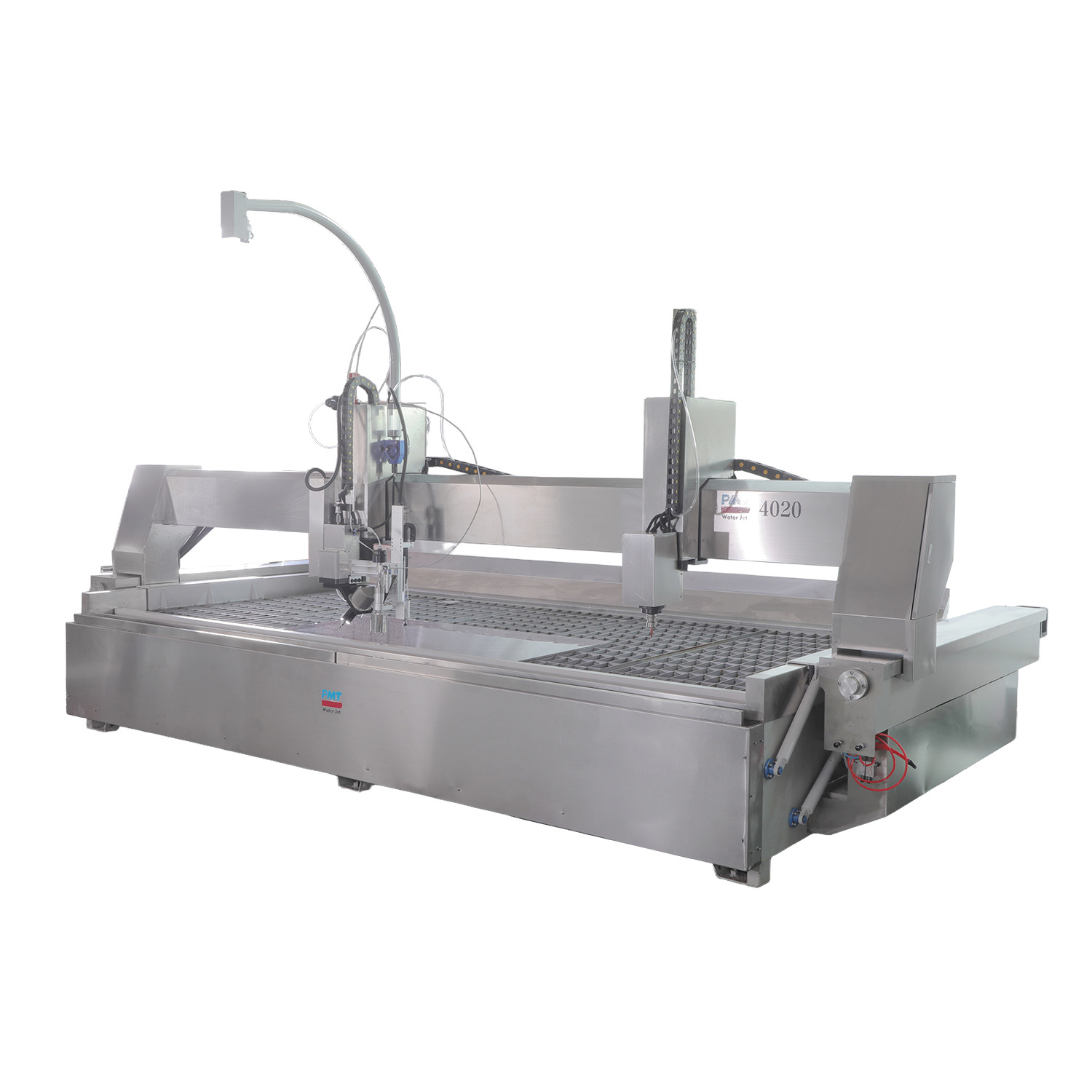

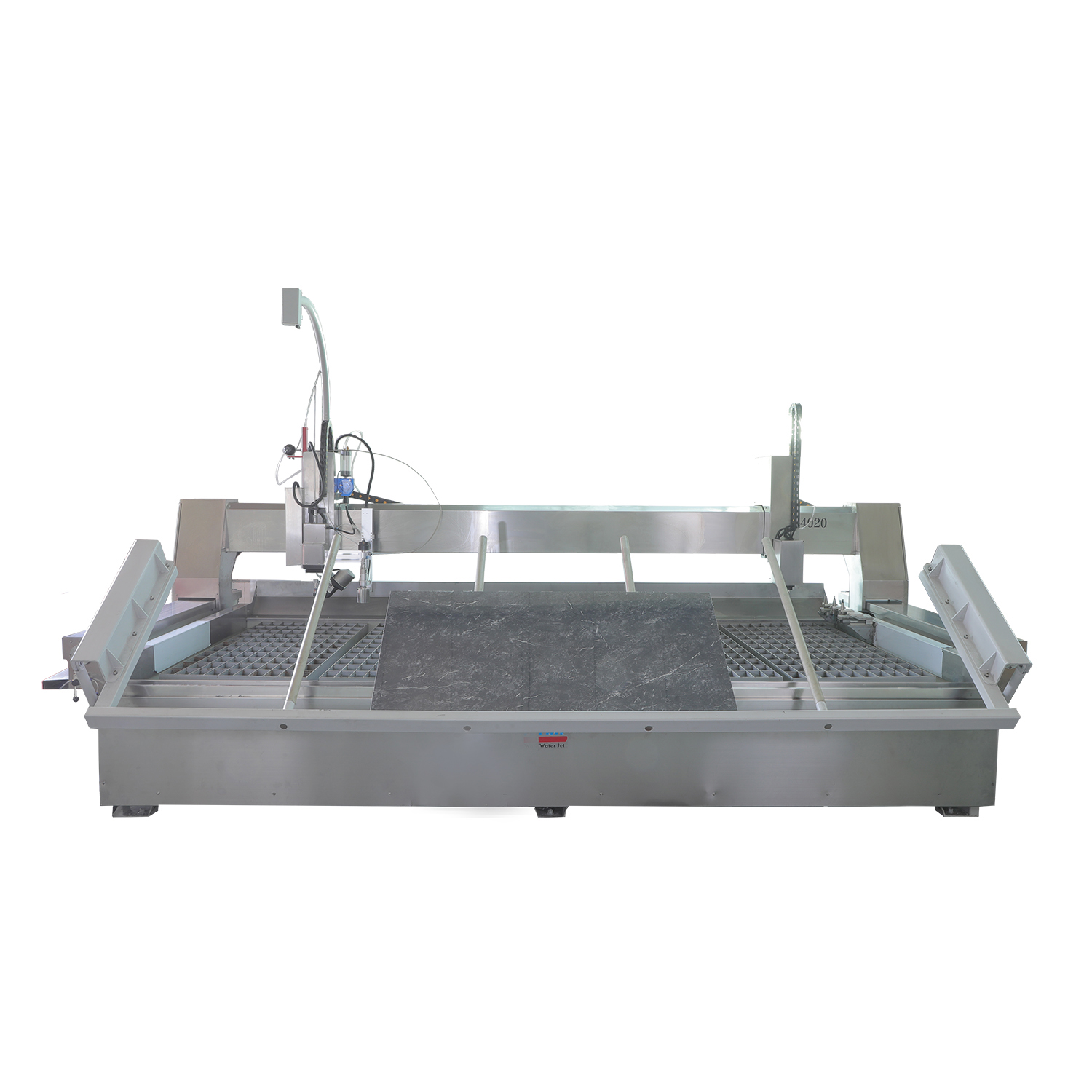

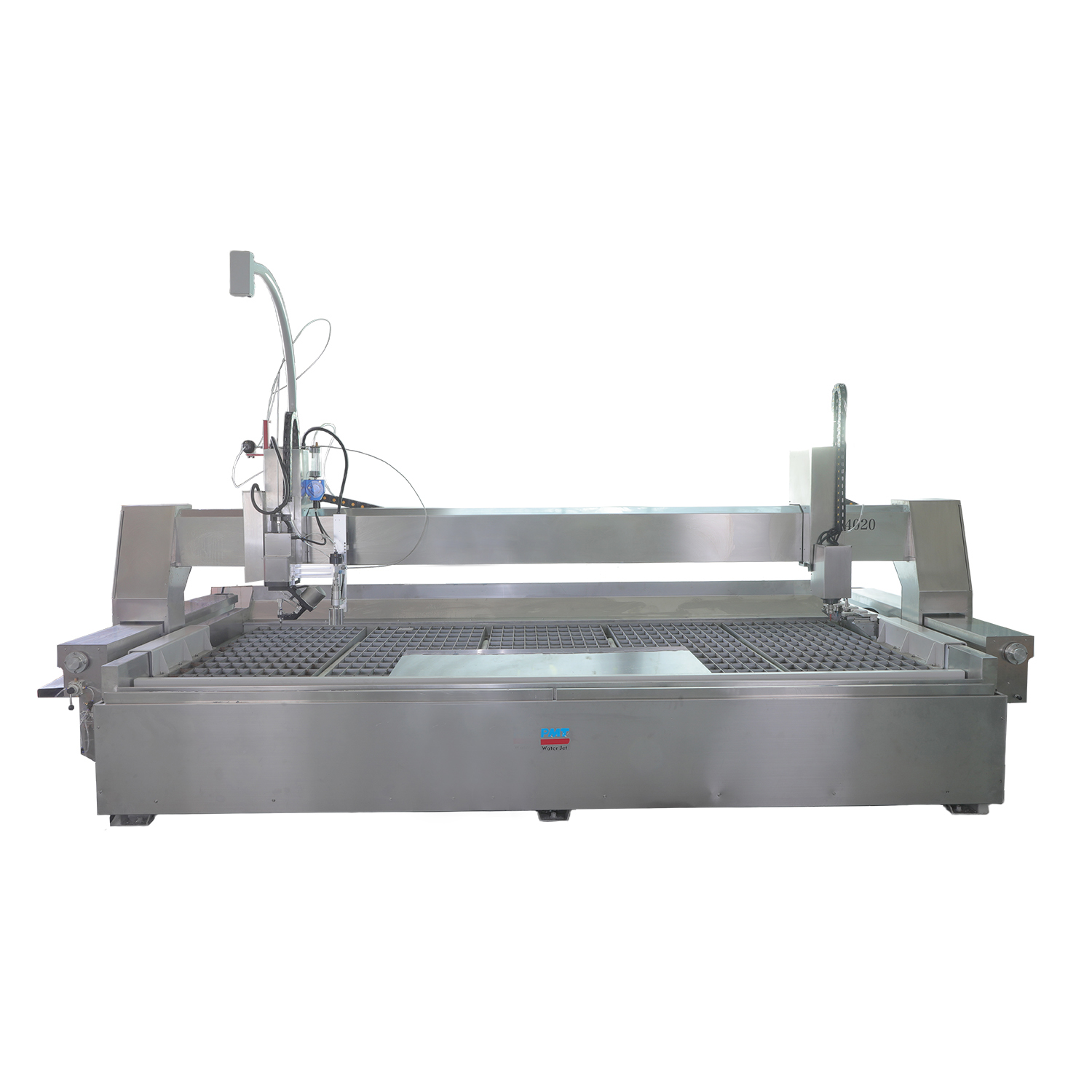

1. Working Table & Controllor
PMT waterjet cutting table consists of transmission part with X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, long running distance of X and Y axis,suitable for processing a variety of complex big size parts.
The cutting table is a 2-D pc-controlled table, consisting of Y-axis, catcher, X-axis, Z-axis (cutting head rest), cutting head,high pressure hose, and the abrasive box. Both the X axis and the Y-axis are installed with linear guide and ball screw.
Model | 2015 | 2515 | 3020 | 4020 | 6020 |
Dimension(mm) | 2650*2150mm | 3100*2150mm | 4500*2300mm | 5250*2300mm | 7250*2300mm |
Max. cutting range | 2000*1600mm | 2000*1500mm | 3200*1750mm | 4000*1750mm | 6000*1750mm |
Travel of Z axis | 180mm | ||||
Servo system | Weihong,OEM Panasonic | ||||
ball-screw linear-rail | ABBA/TBI,Taiwan Brand | ||||
Re-positioning accuracy | ±0.025mm/m | ||||
Cutting accuracy | ±0.1mm | ||||
Max. running speed | 15m/min | ||||
lubrication | Oil Immersion | ||||
Material | 203stainless steel material tank,cast steel beam,rubber and stainless steel cover |

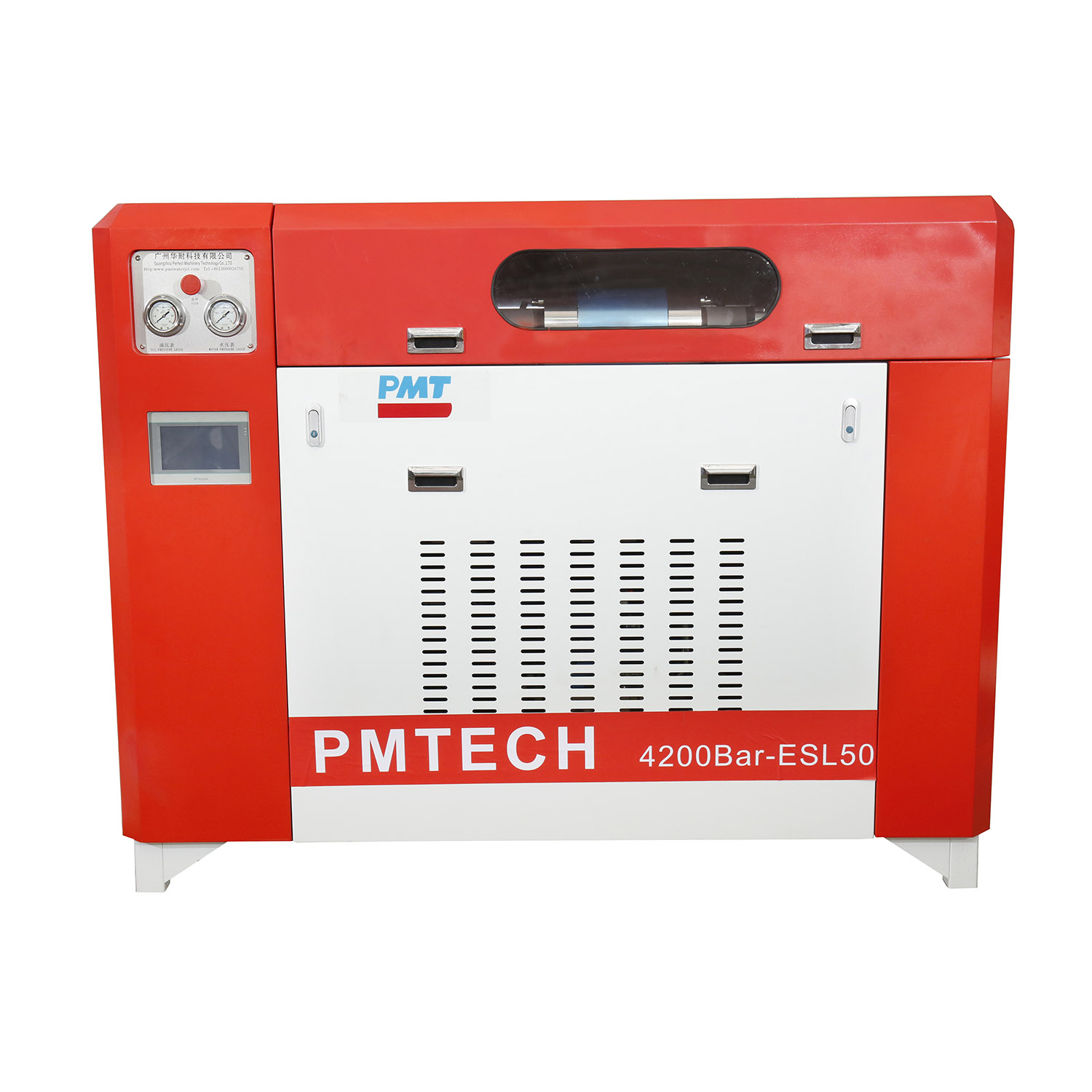

2.ESL50 High presssure pump structure
Dimension(L*W*H) | 1800*1000*1400mm |
Weight | 1200Kg |
Power rate | 37kw/50hp |
Max. pressure | 420Mpa /4200bar |
Working pressure | 300-350Mpa |
Max. oil discharge | 104L/min |
Max. Flow rate | 3.7L/min |
Power supply | 380 V 50hz |
Water supply | ≥15.1L/min |
Accumulator | 1.5liter |
①Water supply system
The main engine needs two water sources for cutting and cooling, thus we need two drainages: the cooling water drainage and the water leakage drainage.
Special definition is listed below:
Cutting water: The intensifier must be supplied with water of 20-1000psi (1.4-6.9bar). The input water should not less than the output water by 1.5 times.
Cooling water (for the heat exchanger): The heat exchanger is used to adjust the accumulated heat in the hydraulic oil.
②Hydraulic system
The hydraulic system consists of pressurization, filtration, and cooling systems. The intensification principle is: a motor of 37kw drives the hydraulic pump, then the pump will pressurize the hydraulic oil up to 20Mpa max.
③Waterjet Intensifer system
The intensification system mainly refers to the intensifier, but it also includes other components in the water circuit that make the lower pressure water into high pressure water. Specifically, it includes intensifier, accumulator, high pressure tube,connector etc. Intensifier is main part of the intensification system. A section for the intensifier 's principle, structure, and maintenance is contained in this manual.
④Electrical control system
The electric control system is integrated into the control panel, including PC, control circuit. This control system is used to start/stop the main engine and adjust the speed. The function of the display, buttons and knobs on the panel is listed below.
"power indicator" "voltage meter" "currency meter" "master switch" "Pump & main engine switch" "high pressure/abrasive switch" "emergency stop"

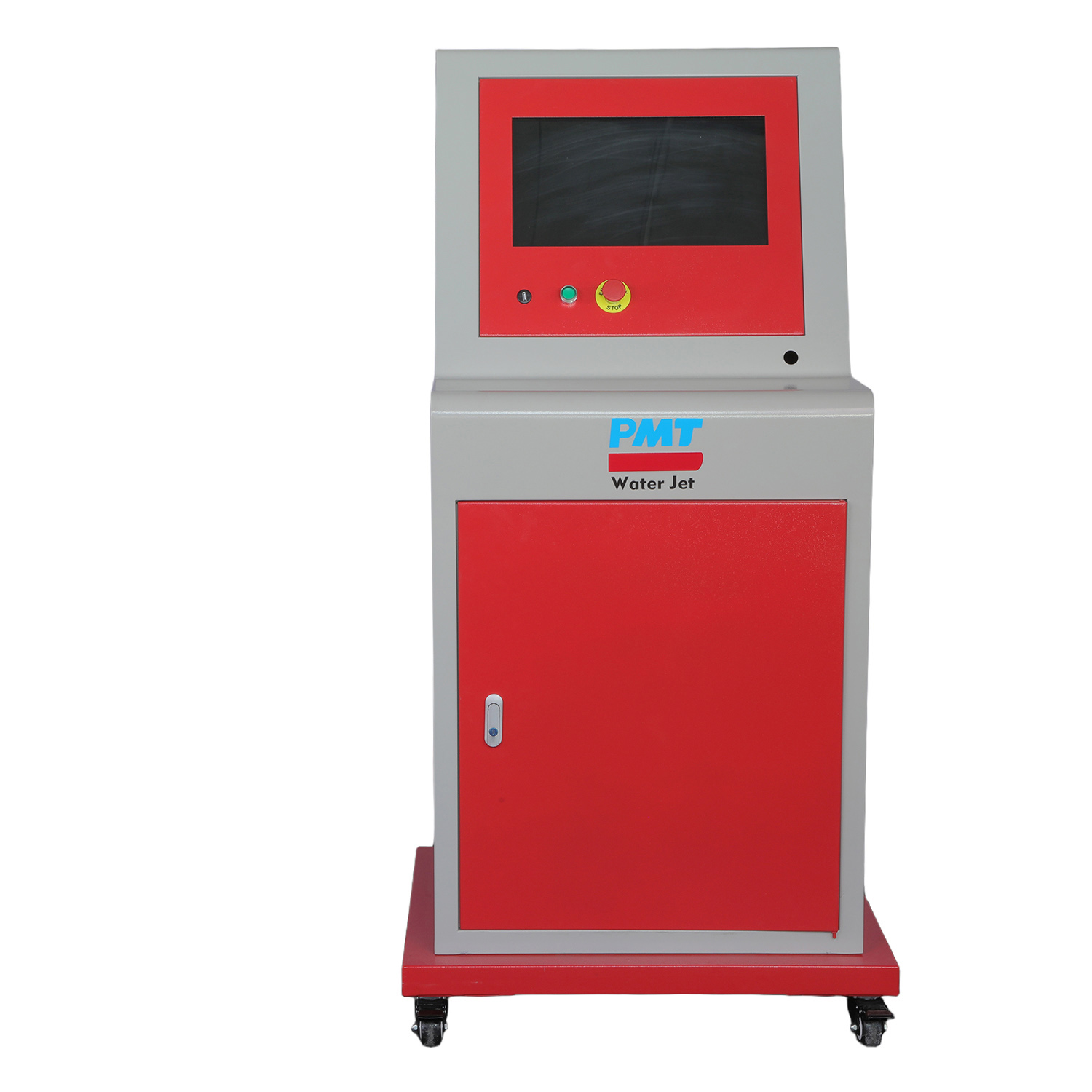

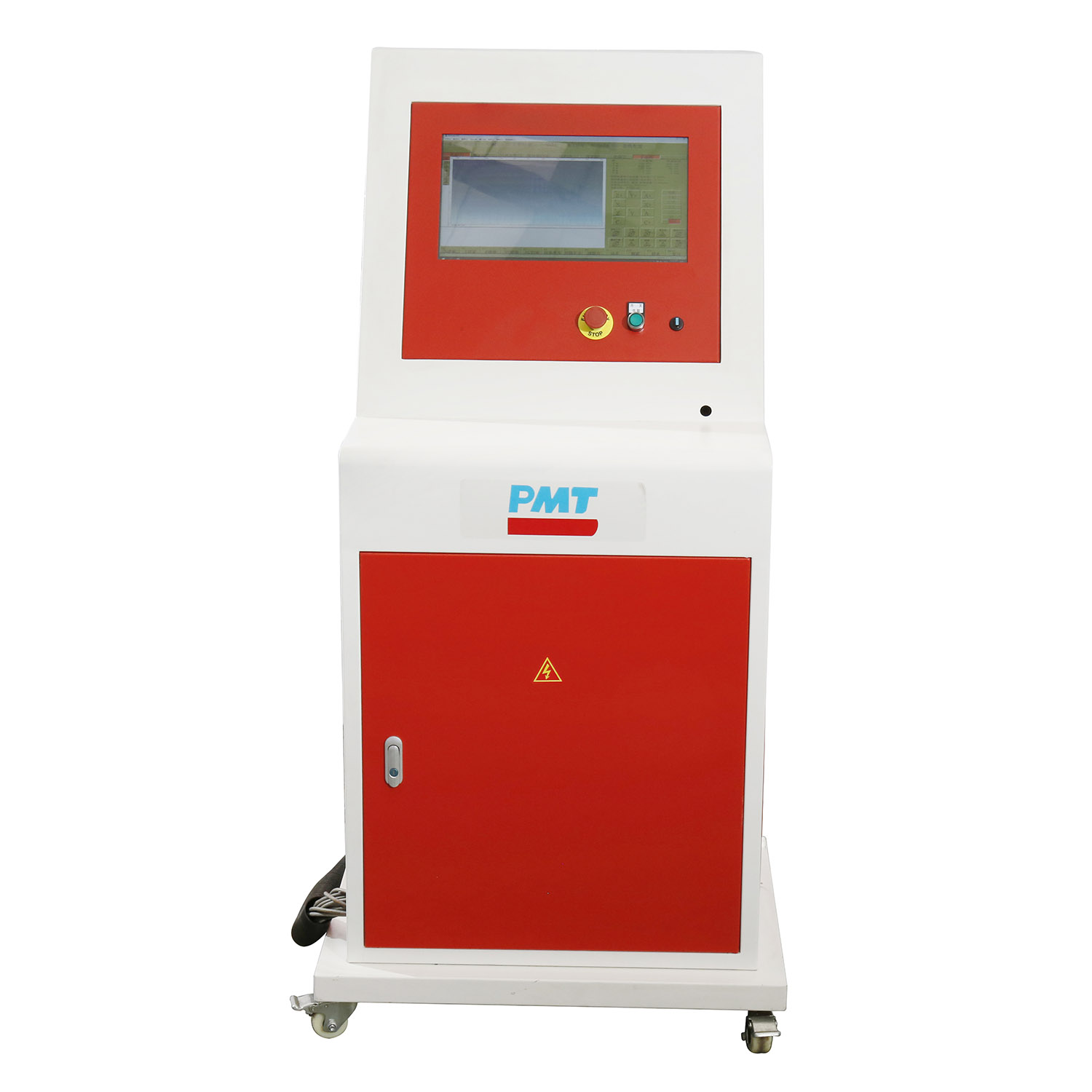

3. CNC Controller
Power supply | AC220V 50/60Hz |
Drawing system | Auto-CAD |
Computer system | Windows 7 |
Function | Remoter controller |
screen | Apply 19 inch LCD |
Water jet software NC-Studio-V10 | Support DXF file and NC code |

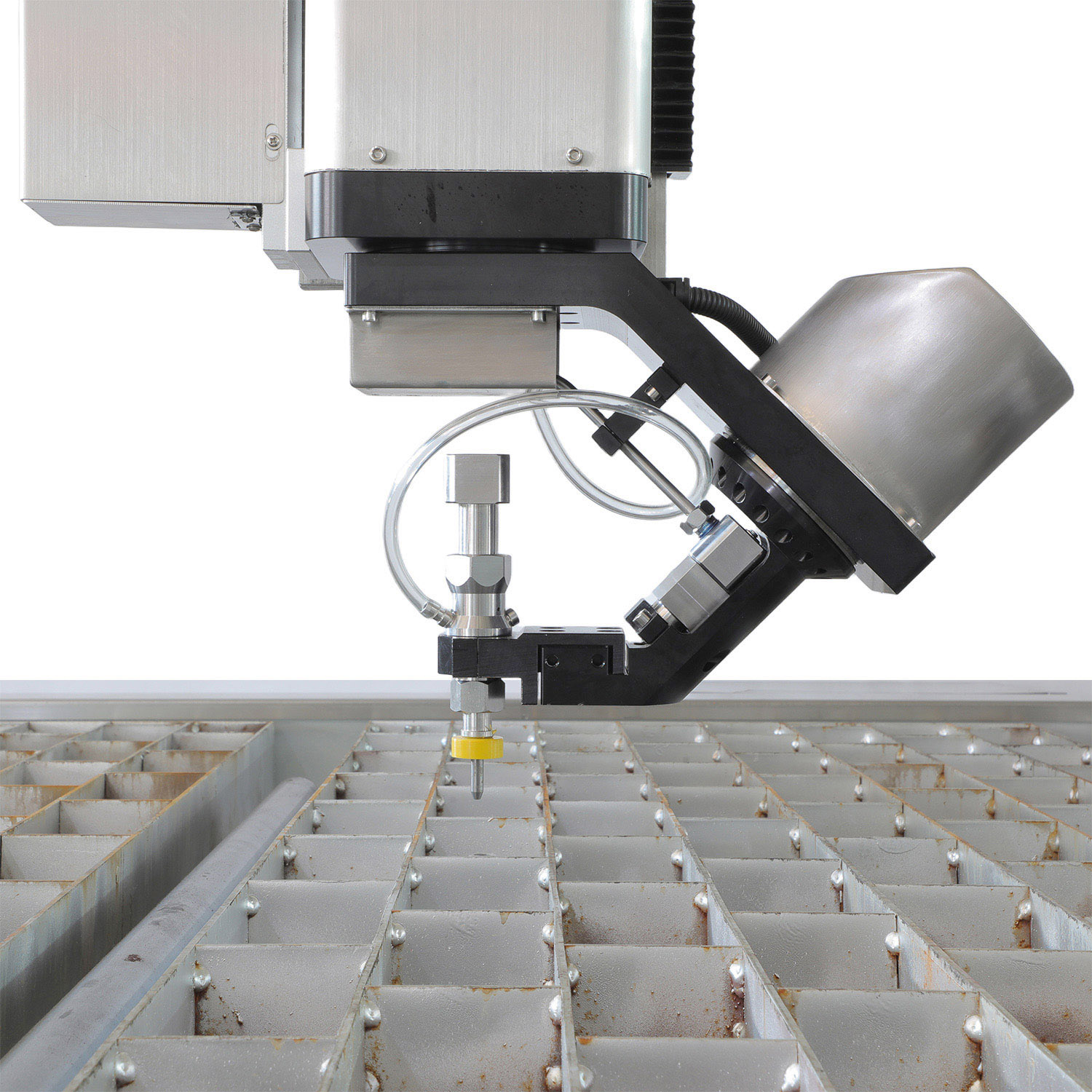

4.AC 5 Axis cutting system for diamond cutting head
Re-positioning accuracy | ±0.02/1000mm |
Cutting accuracy | ±0.15/1000mm |
Max. prussure | 420mpa |
Orifice type | Parse 3 |
Nozzle type | 7.14*1.02*76mm |
running travel of Z axis | 180mm |
A-Axis Roteting Angle | ±67° |
C-Axis Roteting Angle | ±360° |
Cutting Angle | ±45° |
application | 2D/3D cutting |

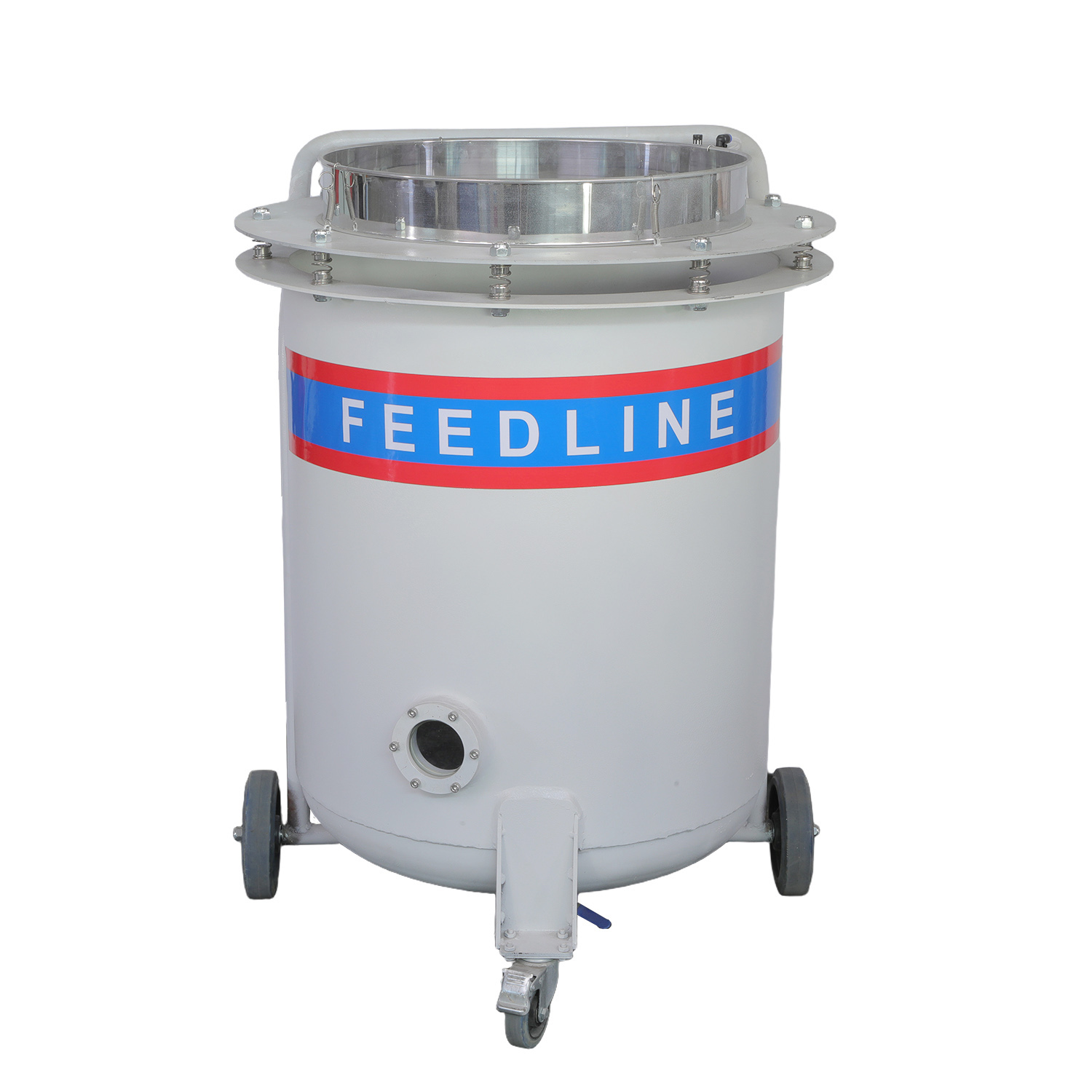

5.Abrasive Feeding System
Dimension(L*W*H) | 700*700*1350mm |
Weight | 80kg |
Max. capacity | 200kg |
Max. air pressure supply | 2bar |
software controlling motor adjustting regulator | |
Eliminates abrasive waste |
6 ,Floor Loading Systerm
The cutting speed of mini waterjet cutting machine varies depending on the material, thickness, desired cut quality, water pressure and the machine itself configuration, Generally for PMT waterjet, you could find the following speed just for your reference.
Our factory not only have all kinds of size of water jet machines and waterjet spare parts, but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and so on !!!
Technical Training
1, basic working principle of the super-high pressure water jet cutting machine2 , working principle of the high-pressure systemand supercharge
3 , replacement of the high-pressure sealed, low-pressure sealed and high-pressure parts
4 , maintenance of the high-pressure system and judgment and troubleshooting of common failures
5 , CNC Programming&operation&operation of the NC cutting platform
6 , daily maintenance of the NC cutting platform
7 , equipment installation
8 , abrasive control and transportation operation and CNC communication
9 , operation of the CAD / CAM software and CNC communication
10 , working principle, maintenance and judgment and troubleshooting of common failures of the main high-pressure functional parts, high-pressure water switches and abrasive cutting head
After-sales Service
1 , Free warranty for the whole machine for one year or 2000 high-pressure/hour 2 , Training of two personnel for operation and maintenance of equipment and one computer operator for the user
3 , On-line installation and commissioning (the user is responsible for board and lodging)
4 , Lifetime maintenance
5 , To Guarantee long-term supply of spare parts
6 , To enjoy upgrade of special prices when there are new products and technologies
7 , Repair response time: during the quality assurance period, when the user's equipment fails, respond within 24 hours after receipt notice. For a common failure, direct the user to resume production as soon as possible by way of telephone or e-mail
Product packaging
Wate jet cutting machine package : wooden package out side , inside soft packages or all of soft film and ensure safety. including hp pump ,waterjet cutting table bed with cutting head,CNC waterjet controller,waterjet sand feeder,spare parts with the pump,loading by 20feet or 40feet container. about 30-40cbm , 4000-6000kgs ,whole one set waterjet machine equiment.
Water jet spare parts : soft package inside,carton package outside. waterjet abrasive garnet sand: packing by*25kg small packing + 40bags in a big bag. The package ways aslo can according to customer requirement.
Delivery time for machines:15-30days Delivery time
waterjet spare parts : 1-7days
Company Profile
Guangzhou perfect Machinery Technology Co., Ltd. (PMT) is located in Huadu District, Guangzhou, 10 kilometers away from Canton International Airport. PMT company has been manufacturing high-quality water jet cutting machines. Perfect cutting is our commitment to customers.
After more than 10 years of sedimentation and development, PMT Company has become a national high-tech enterprise that integrates research and development, production, sales, and technology. Adhering to the business philosophy of "quality first, service first", we provide customers with one-stop solutions for stone, ceramic tile glass, and metal processing. Our advanced technology and reliable services have received unanimous praise from customers around the world.
Certifications
